Dumpers/Lifts

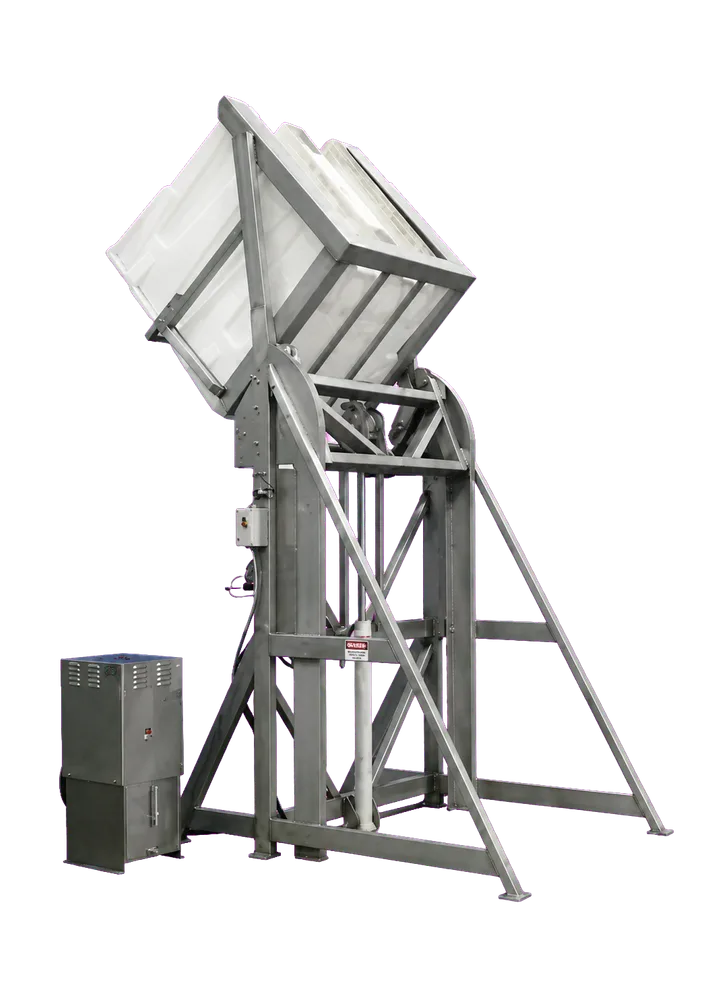

3000 Series Dumper

  • Capable of dumping plastic combo bins or boxed meat on pallets

  • Innovative head design requires only 63" of ceiling clearance over dump height

  • Self-adjusting hold dow bars open up when carriage is lowered and lock down on bin when carriage is raised

  • Smooth operating single hydraulic cylinder rated for 3000 lb. maximum load

  • All stainless steel construction

  • Painted steel cylinder

  • Dump heights from 72" to 120"

3000 dumper

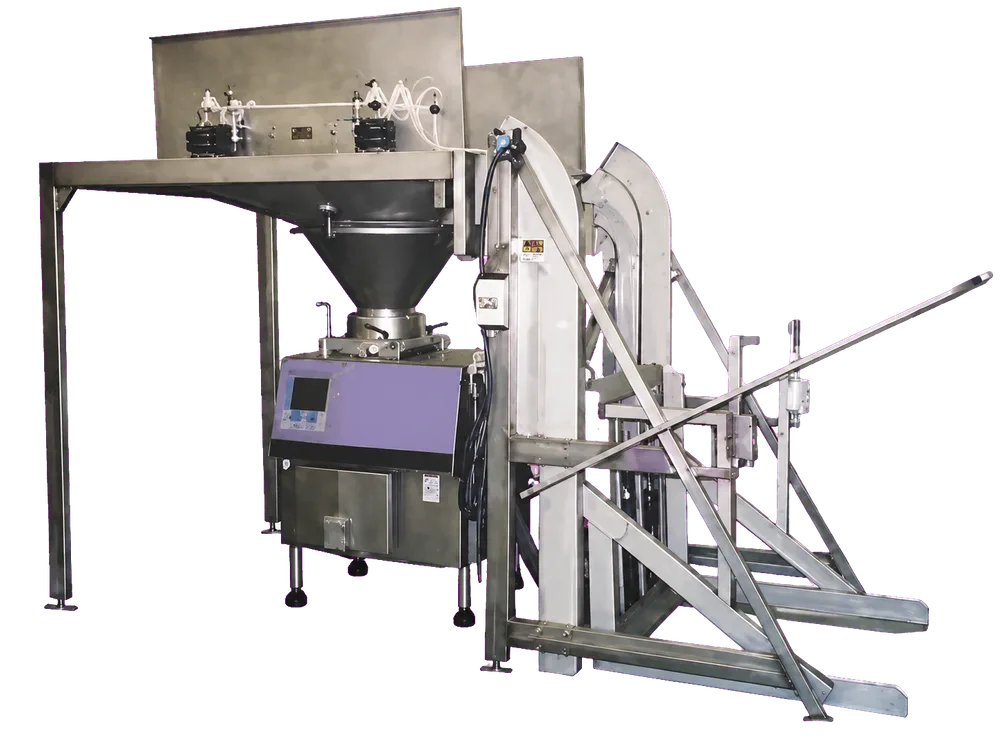

Optional Hopper Assembly

  • Increases stuffer hopper capacity

  • Hopper can lift and roll away from stuffer full of product making maintenance easier

Hydraulic Power Unit

  • Powered by a 7-1/2 hp washdown duty motor     208/230-460 VAC 3 PH​​

  • Oil level, filter, and temperature gauges included

  • Stainless steel construction

  • Small footprint

hot dumper
large lifting frame

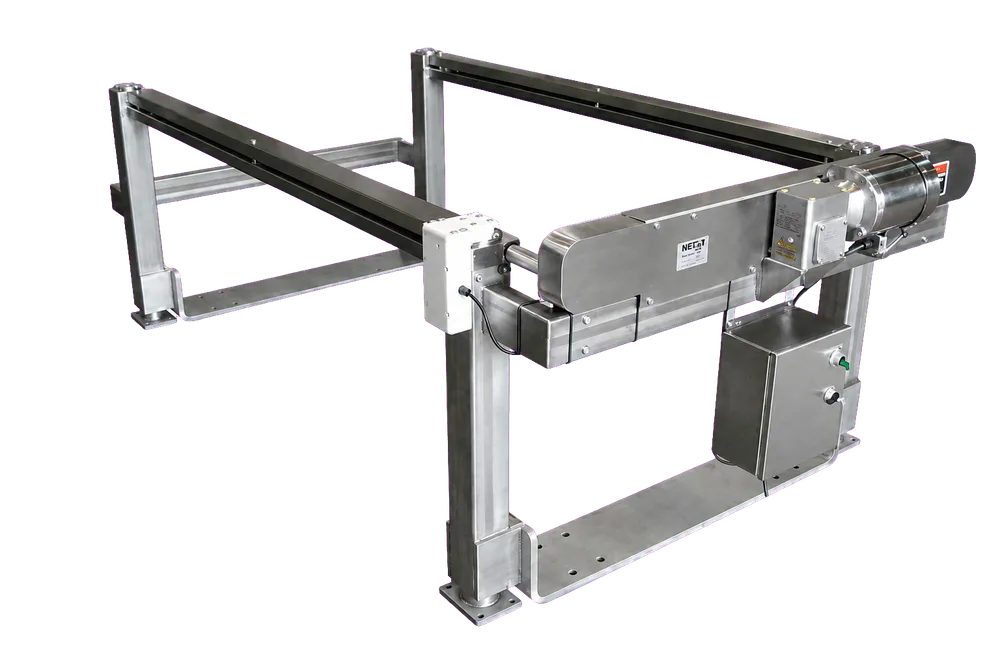

Lift Frame

  • Capable of lifting production machinery

  • All stainless steel construction

  • Four 4" square telescopic jack tubes with lead screw

  • Smooth operating 8000 lb. capacity, lifts all four corners evenly

  • Upper and lower limit switches

  • Caster ready

  • 110 AC input, 1hp motor

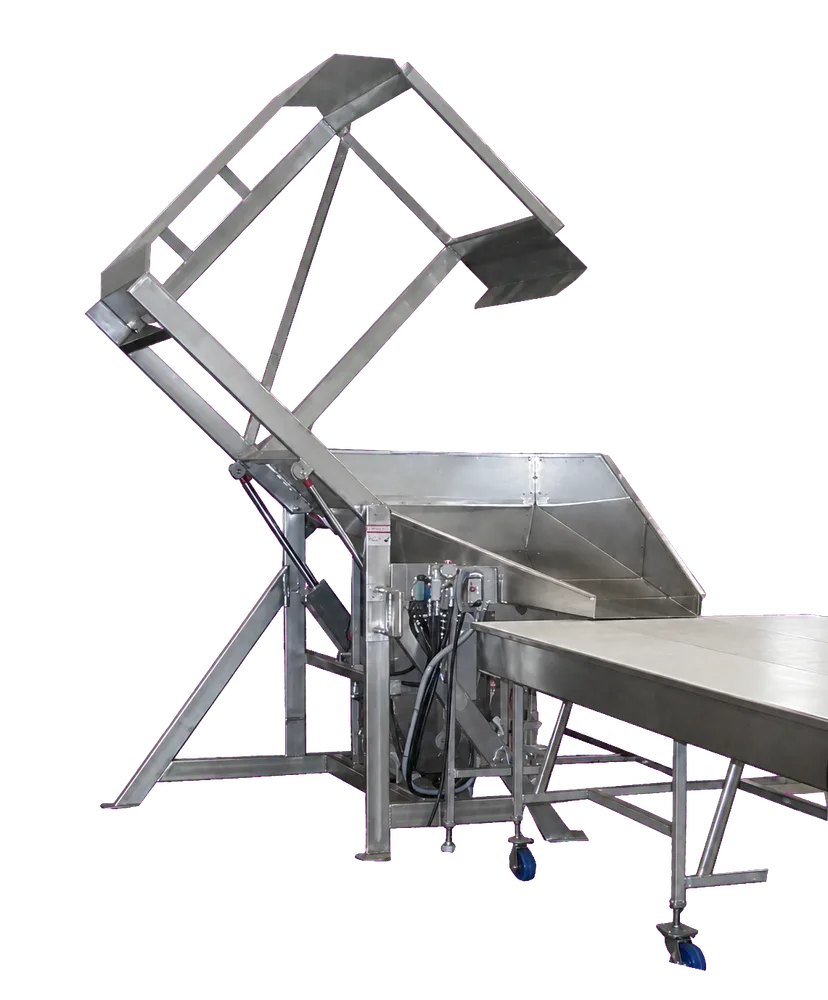

Side Load Pivot Dumper

  • Ideal for tight spaces by using side loading

  • Capable of dumping plastic combo bins or boxed meat in pallets

  • Only requires 127" of ceiling height

  • Stainless Steel Construction

  • Dumper to lift 3000 lb. using two hydraulic cylinders

  • Stainless Steel Covers over steel painted cylinders

  • Manual hydraulic lever valve stack to operate cylinders

  • Includes 230/460 VAC 3 phase 7-1/2 HP hydraulic power unit

pivot dumper
side over dumper
tilt dumper
tilt dumper

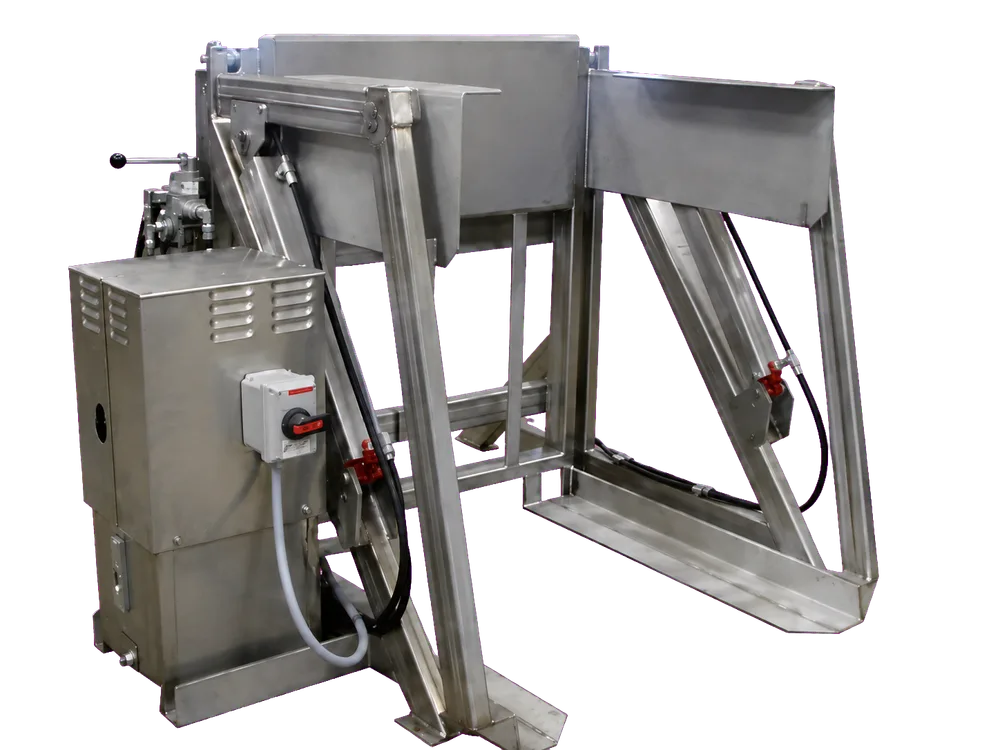

Tilt Dumper

  • Stainless Steel Construction

  • Dumper to lift 3000 lb. using two hydraulic cylinders

  • Stainless Steel covers over steel painted cylinders

  • Manual hydraulic lever valve stack to operate cylinders

  • Includes 230/460 VAC 3 phase 7-1/2 hydraulic power unit

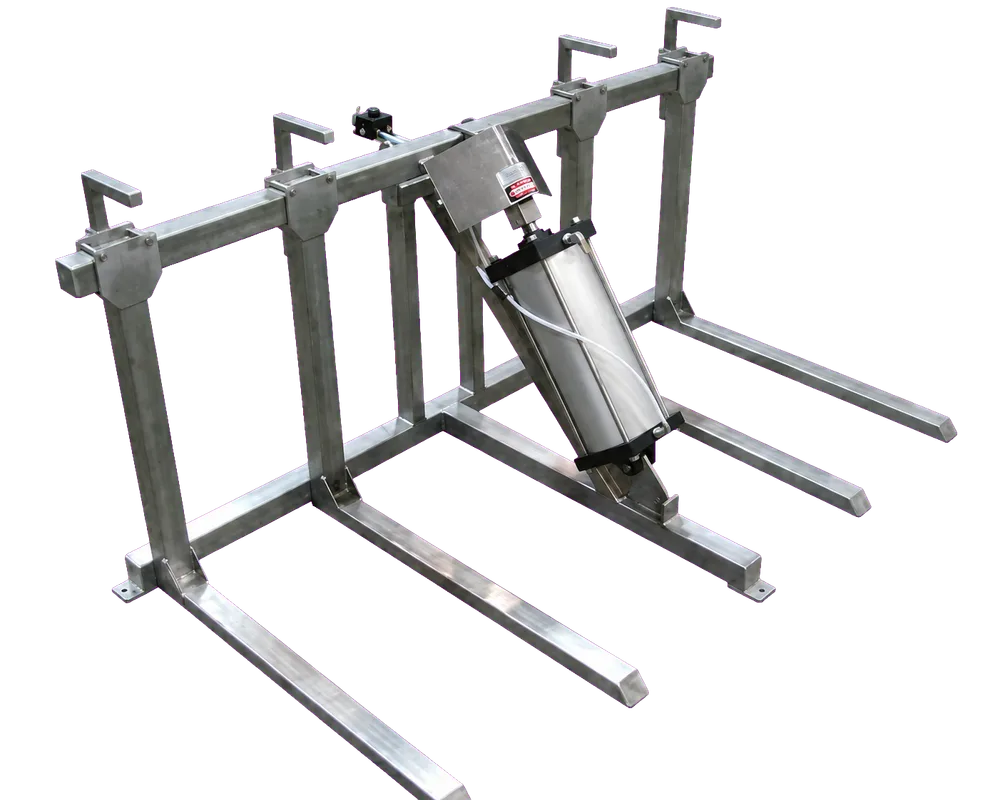

Combo Bin Wash Tilter

  • Machine rotates two side by side combo bins 95 degrees

  • Main tube, 90" wide standard, 120" wide extended version

  • Adjustable width forks and bin hold-downs

  • Frame is Stainless Steel Construction

  • Lift Capacity 600 lbs, using one air cylinder @ 60 psi

  • NFPA air cylinder, only rod and tie ends Stainless Steel

  • Manual air control Valve

bin wash dumper
bin wash dumper front
small mini dumper close
small mini dumper

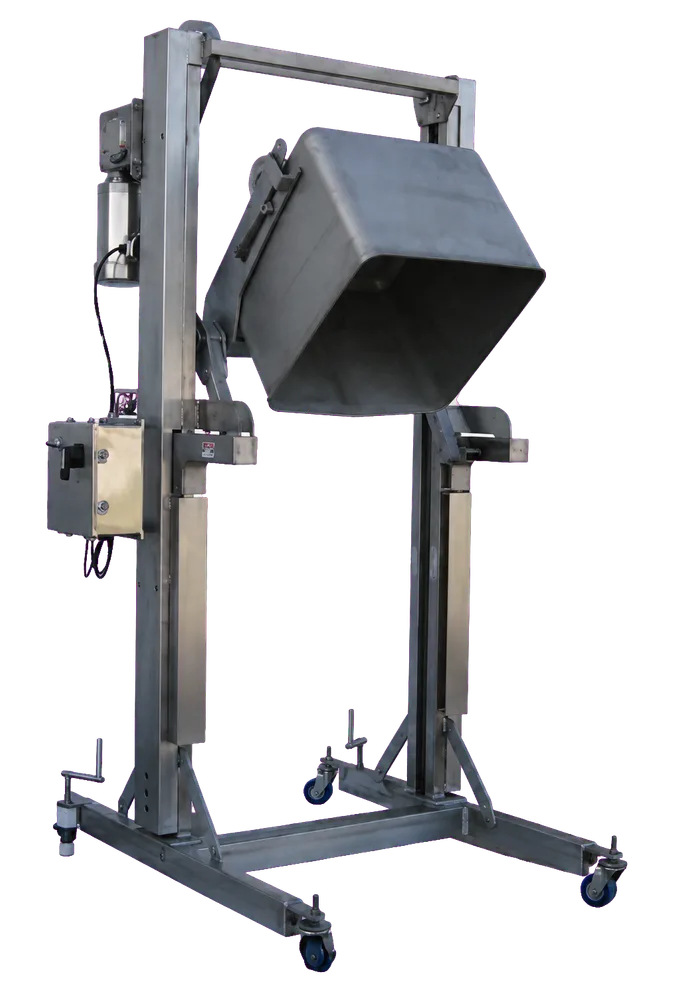

Mini Dumper

  • Used by small to medium processors

  • Capable of dumping totes weighing up to 100 lbs

  • 65" dump height

  • Stainless Steel construction

  • Locking casters on frame enable processors to move the dumper to feed stuffers, grinders, mixers/blenders, etc.

  • 110 AC electrical

  • Leadscrew lift design
