The machines that load, portion, pack and clean on your line — built rugged and washdown-ready, and customized when an off-the-shelf machine won't do.
Equipment for the whole line
From high-speed link loaders and tray denesters to bootwashers, stuffers and packaging-line machines, Westar designs, builds and supports the equipment that keeps a food or meat plant running — and engineers custom solutions when an off-the-shelf machine won't do.
Click any machine below for specs, details and video.

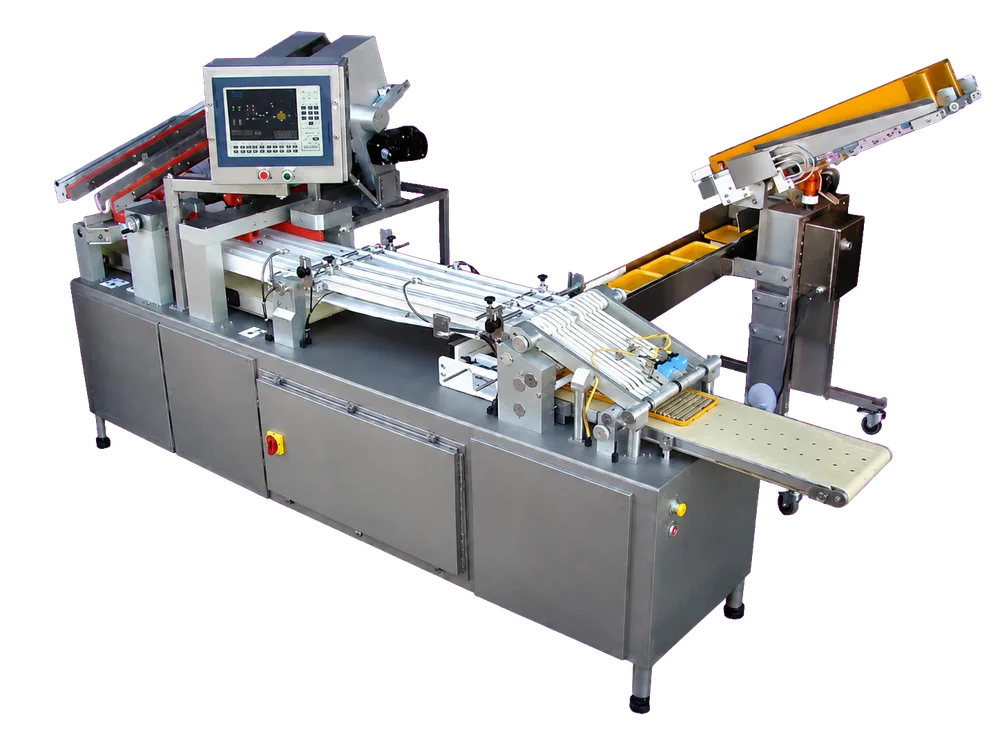

612C Link Loader
Loads up to 960 links per minute with two linkers — without oil or water for product lubrication. Product changeover takes about 5 minutes, all from a touchscreen.
- Throughputup to 960 links/min
- Diameter18–38 mm
- Length3.75"–6"
- Per row4–32 links
- Changeover~5 min
Covered under patent #6,138,820 · other patents pending.

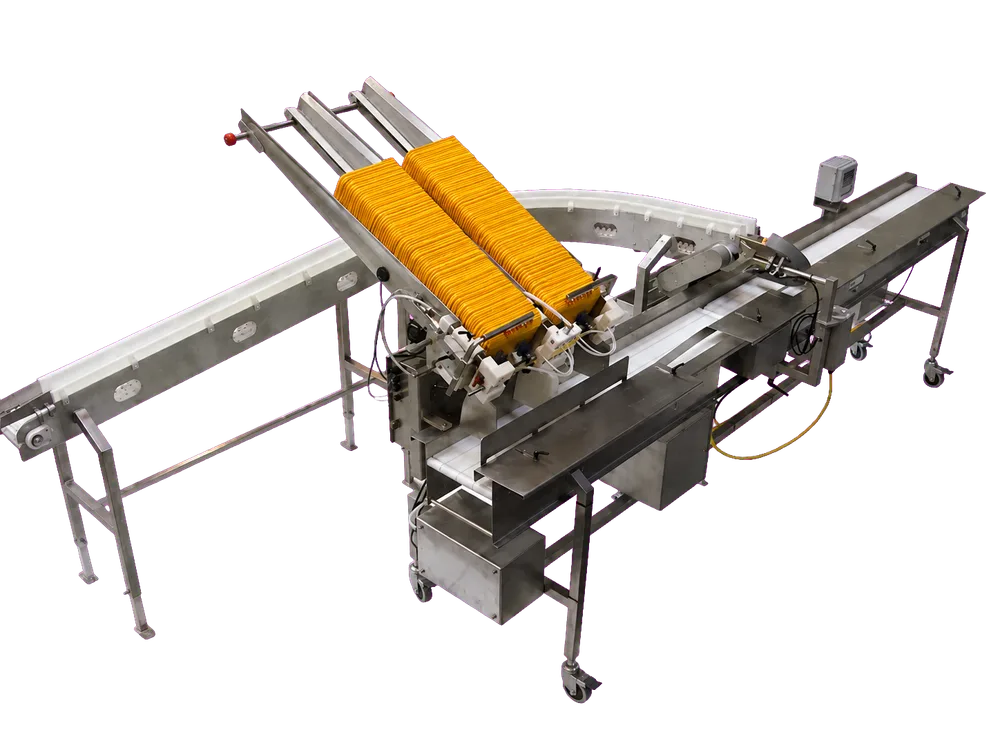

610 Brat Loader
Semi-automatic loading onto trays — from small-diameter collagen to large natural-cased sausage, with vacuum tray hold-down and tray speeds up to 60/minute. Links are oriented manually.

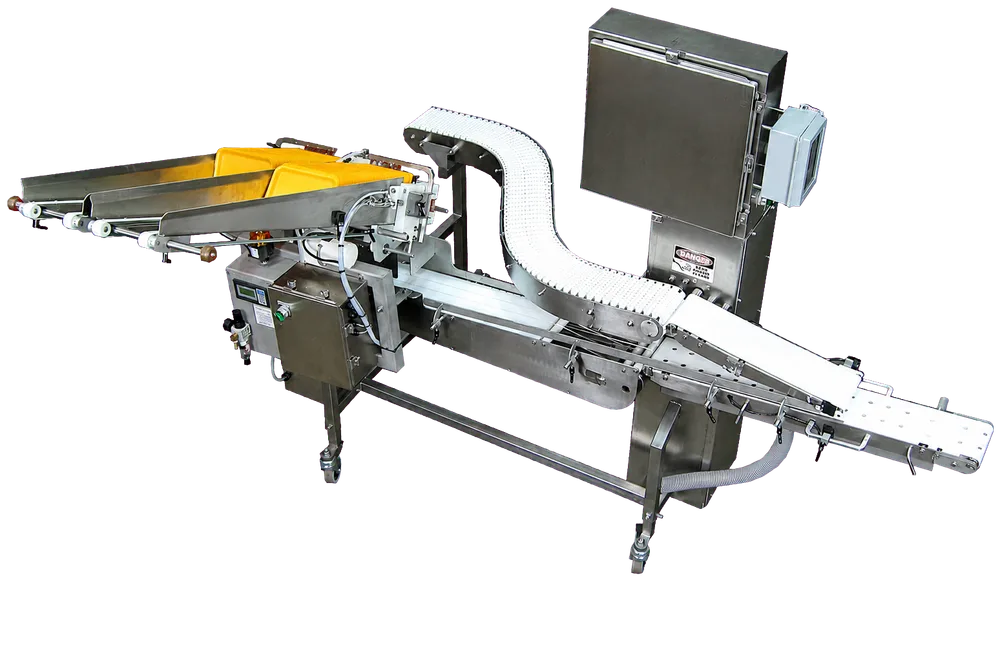

Portion Loader

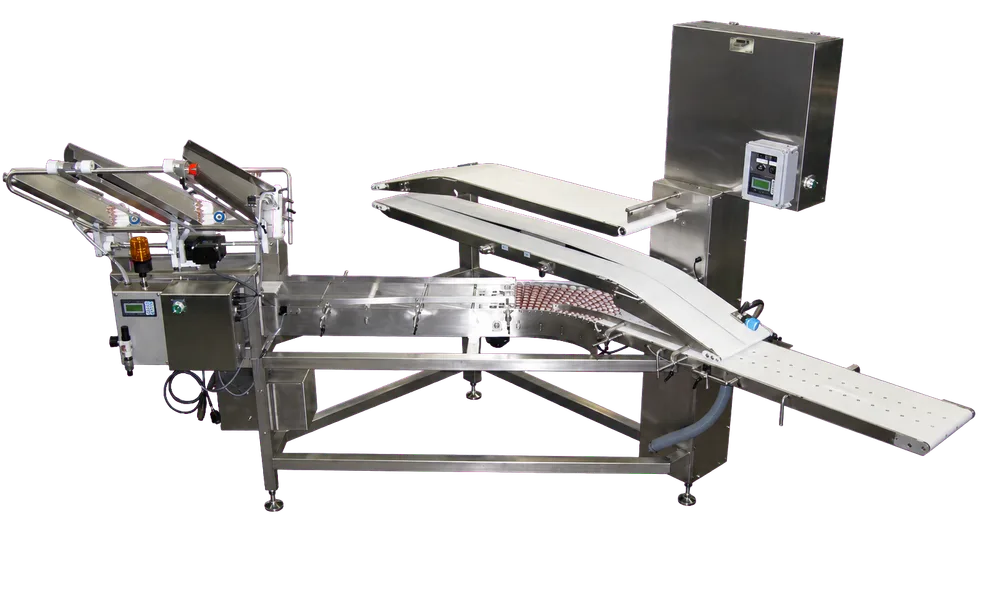

Cheese Loader

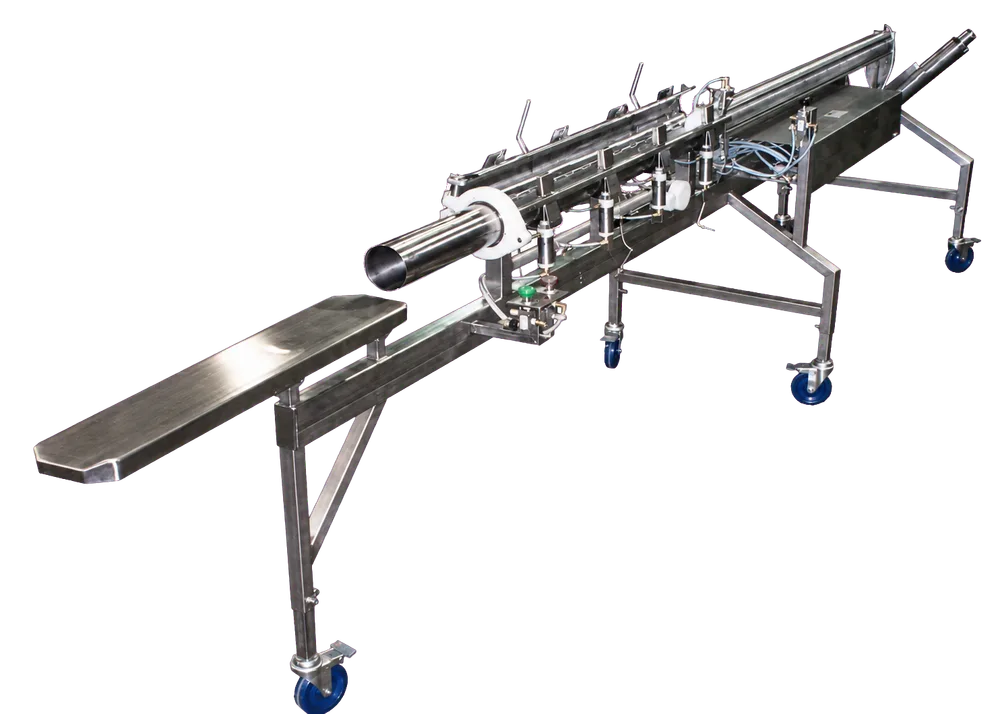

Piston Stuffer
A pneumatic stuffer that gently stuffs whole-muscle product at only 60 PSI into polymer or fibrous keeper casings from 70–140 mm.
430CD Tray Denester
Denests many rectangular foam tray sizes with quick, easy change-over from one size to another (use quality trays for best results).
- Speedup to 60 trays/min
- Capacity~400 trays
- ControlPLC + digital display

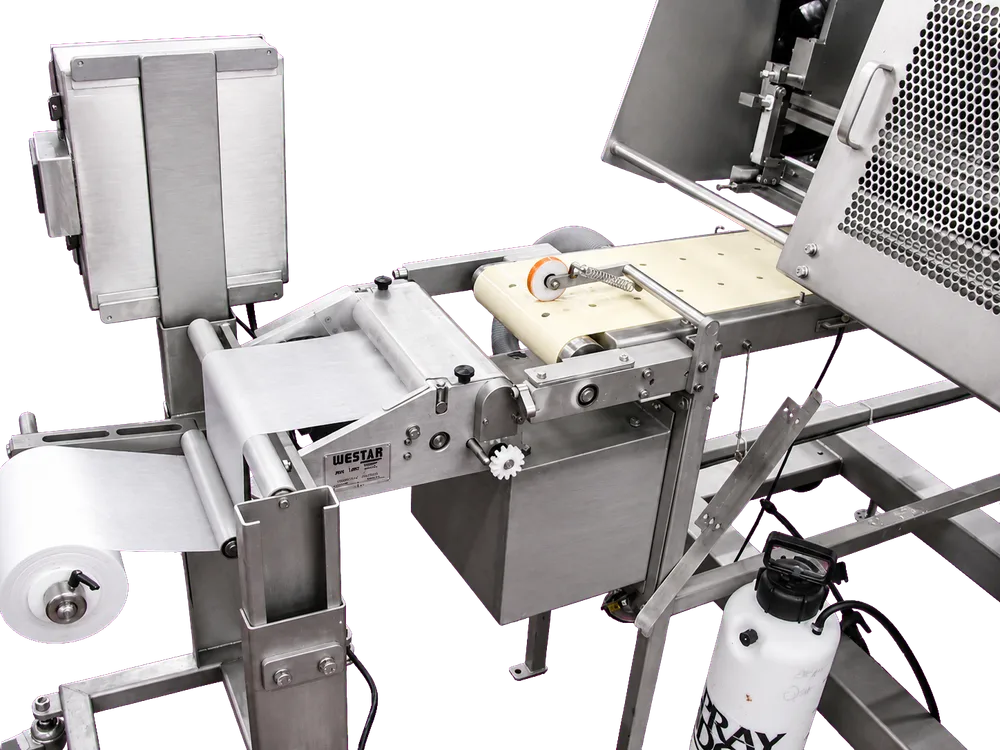

640PF Paper Feeder
Cuts one paper roll to length for your pack line, PLC-controlled, in a 90° turn or straight-through configuration.
- Roll width4"–8.5"
- Cut length8"–24" (½" increments)
- ControlPLC + display

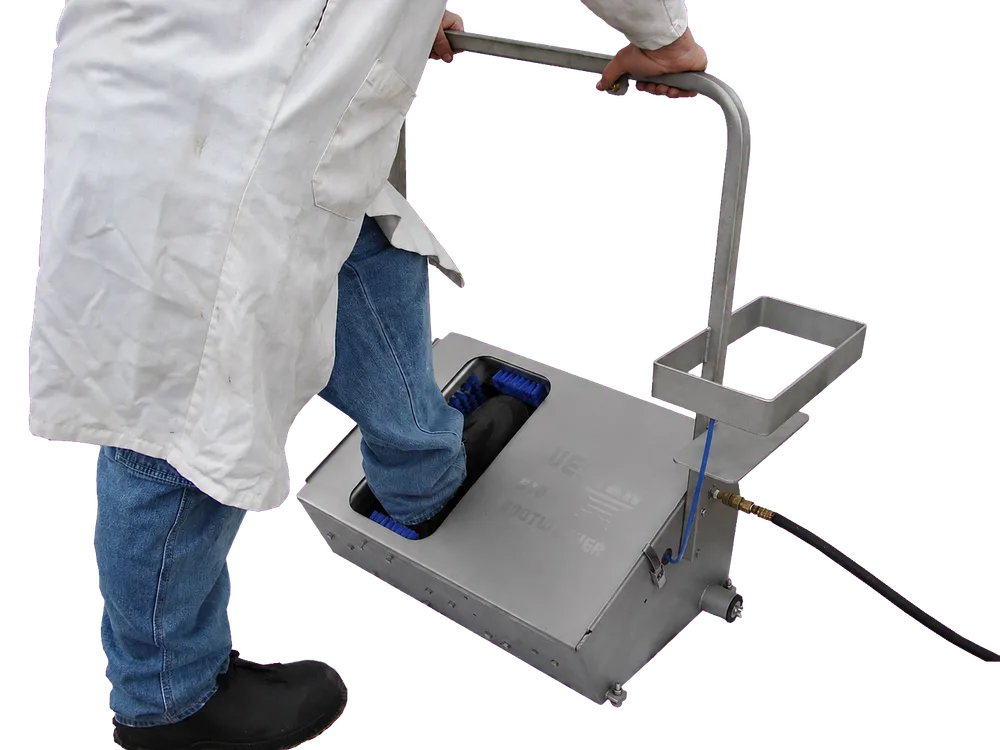

510 Bootwasher
A compact, all-air-operated boot washer (no electrical) with reciprocating side and bottom brushes, integral foam generator and spray bars, and quick disassembly for sanitation. Fits tight entryways at 19"×30".

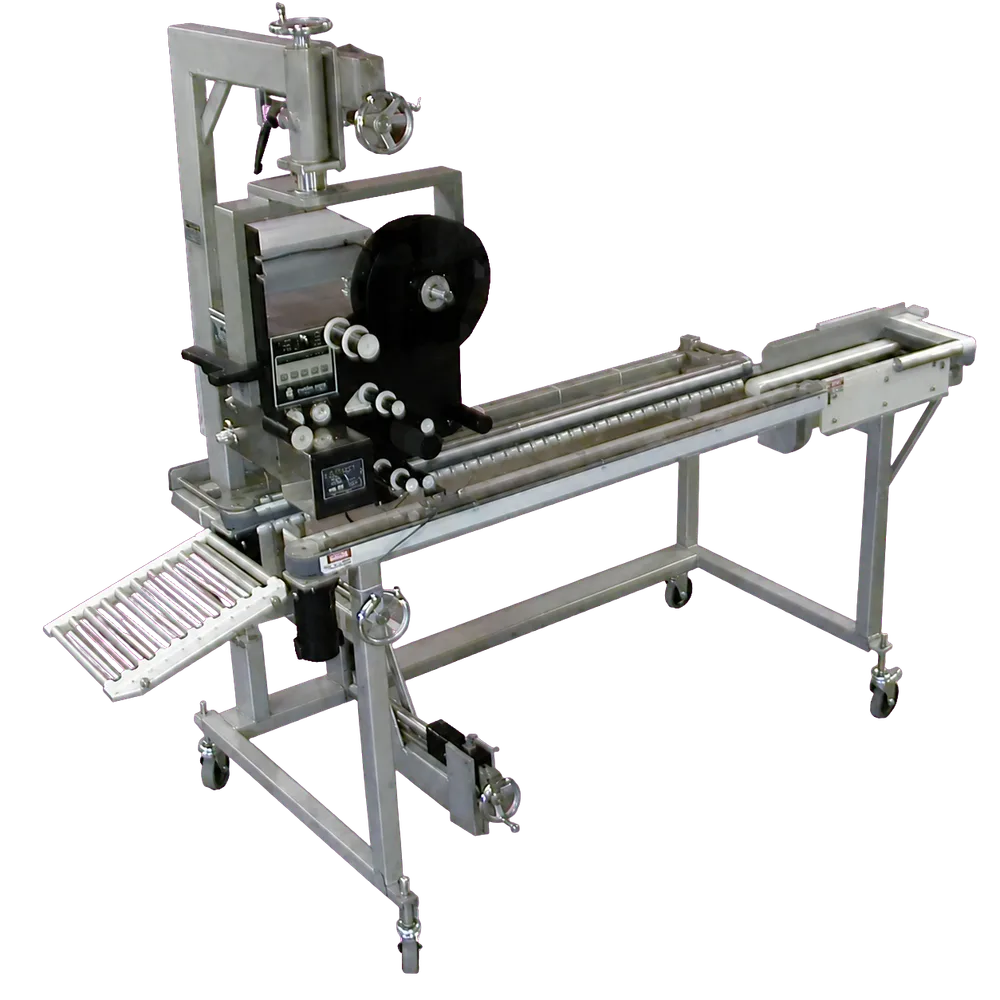

Tray Label System
Supports and adjusts up to 4 labelers, with width-adjustable side conveyors, tray-support rollers, variable-speed DC drives and a gravity-roller outfeed.

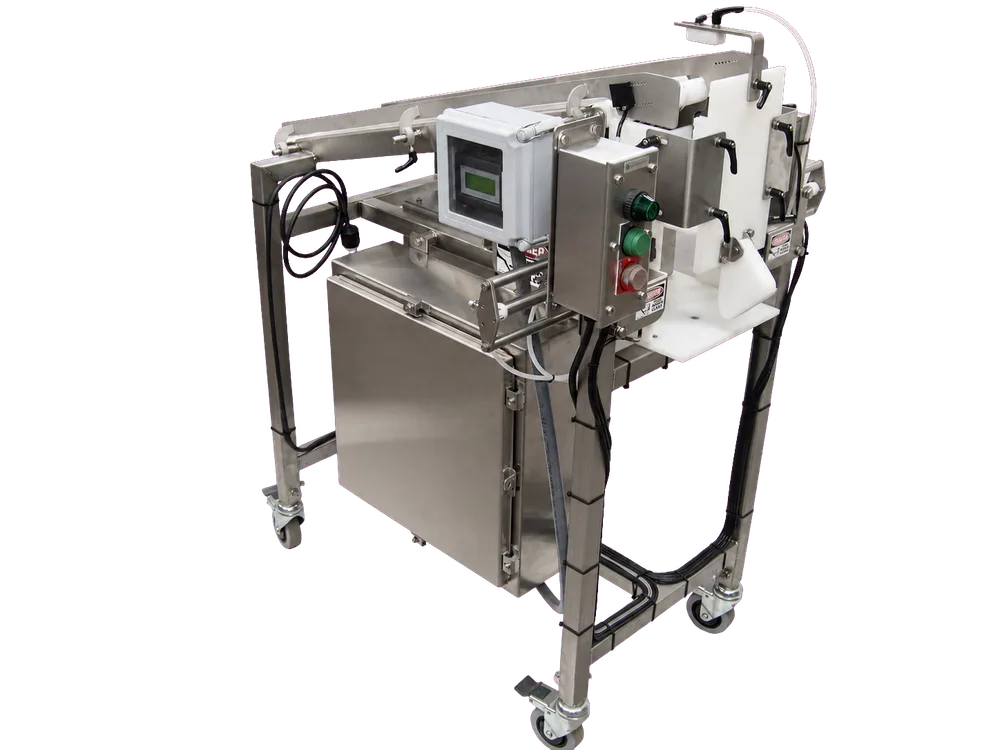

Flip Stacker
Need this for your line?
Send a drawing or describe your application — we'll get you a quote.
